LTFV

Effective skid prevention with hot water sanding

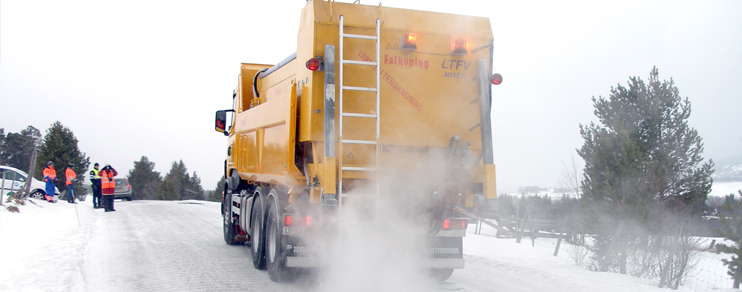

For optimal durability, the developed hot water spreader, Falköping LTFV, is the most efficient that can be used. Sand mixed with 95° hot water give skid protection which freezes onto the road surface. The frozen sand gives very high friction for a long time. The spreader is equipped with exhaust heating which provides pre-heated spreading material. The spreader has an integrated agitator in order to obtain even feed of spreading material. The spreader can also be used as a salt spreader of dry, moisturized or mixed material.

LTFV spreads
• Sand
• Salt slurry
• Salt
• Moisturised salt
• Hot water moisturised sand
• Hot water moisturised salt







Panel PC
• Stepless and synchronised breadth and
quantity setting
• Road surface dependent, spreading
synchronised with vehicle speed.
• Feed screw with feedback for maximum precision
• Spreading control with indication lamps
• Quantity meter
• Jettisoning
• Feed manoeuvring, right/left or both
• Warning light and lighting
• Simple calibration facilitated by built-in
tachometer function
• Prepared for computerized data collection,
GPS and GSM activation and control by road
surface temperature
• Prepared for external communication
CEN/DAU-protocol

Feed screws
• Double screws for safe outfeed,
• Can be operated at the same time or separately
• Reversible, in event of stoppage.
• Patented bottom stirrer too extreme difficult material.





Compact hydraulics
• Hand operated to scale
• service friendly module system
• great precision through position sensitive slides

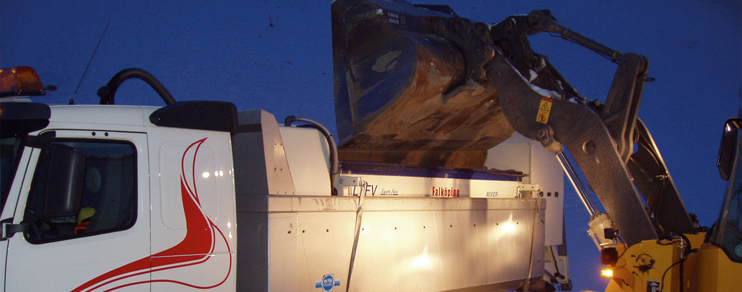

Easily loaded
• low loading height • steep sides, for safe emptying of the container • low centre of gravity






Sand and/or salt mixed with hot water at 95 °C gives the most effective skid protection

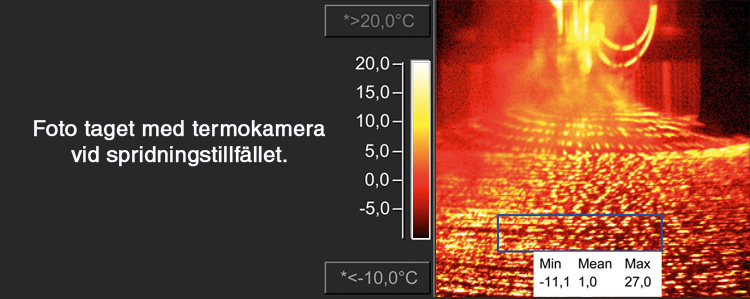

Photo taken with a thermal image camera during spreading.






Works according to a method that gives
long durability to the
skid prevention effort
• increases efficiency
• increases traffic safety
• increases friction
• protects the environment
• better overall economy

Facts C-7 LTFV C-9 LTFV C-9 LTFV-2T
Volume sand/salt 7.0 m3 9.0 m3 9.0 m3
Liquid 2.1m3 2.7 m3 2.7 m3
Weight 3200 kg 3300 kg 3500 kg
Heating output 300 kW 300 kW 300 kW
Spreader discs 1 1 2
Water temperature 95°C 95°C 95°C
Heating time 9 min 9 min 9 min
Technical Specification

Technical specification: Hot water, hard sand spreader, Salt and salt slurry spreader, Speed synchronised moisturising of sand
